gr_cpfsk_bc Class Reference

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits. More...

#include <gr_cpfsk_bc.h>

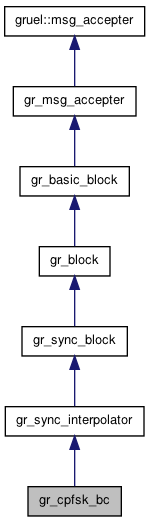

Inheritance diagram for gr_cpfsk_bc:

List of all members.

Public Member Functions
	~gr_cpfsk_bc ()
void	set_amplitude (float amplitude)
int	work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
	just like gr_block::general_work, only this arranges to call consume_each for you
Friends
gr_cpfsk_bc_sptr	gr_make_cpfsk_bc (float k, float ampl, int samples_per_sym)

---

Detailed Description

Perform continuous phase 2-level frequency shift keying modulation on an input stream of unpacked bits.

Parameters:

k	modulation index
ampl	output amplitude
samples_per_sym	number of output samples per input bit

---

Constructor & Destructor Documentation

gr_cpfsk_bc::~gr_cpfsk_bc

(

)

---

Member Function Documentation

void gr_cpfsk_bc::set_amplitude

(

float

amplitude

)

[inline]

int gr_cpfsk_bc::work	(	int	noutput_items,
		gr_vector_const_void_star &	input_items,
		gr_vector_void_star &	output_items
	)		[virtual]

just like gr_block::general_work, only this arranges to call consume_each for you

The user must override work to define the signal processing code

Implements gr_sync_block.

---

Friends And Related Function Documentation

gr_cpfsk_bc_sptr gr_make_cpfsk_bc	(	float	k,
		float	ampl,
		int	samples_per_sym
	)		[friend]

---

The documentation for this class was generated from the following file:

• gr_cpfsk_bc.h
