gr::fec::encode_ccsds_27_bb Class Reference

A rate 1/2, k=7 convolutional encoder for the CCSDS standard. More...

#include <encode_ccsds_27_bb.h>

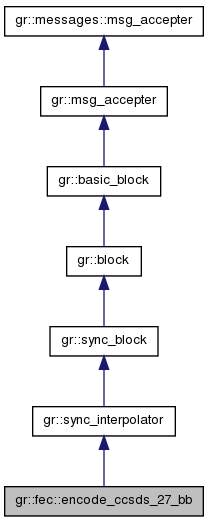

Inheritance diagram for gr::fec::encode_ccsds_27_bb:

List of all members.

Public Types
typedef boost::shared_ptr < encode_ccsds_27_bb >	sptr
Static Public Member Functions
static sptr	make ()

---

Detailed Description

A rate 1/2, k=7 convolutional encoder for the CCSDS standard.

This block performs convolutional encoding using the CCSDS standard polynomial ("Voyager").

The input is an MSB first packed stream of bits.

The output is a stream of symbols 0 or 1 representing the encoded data.

As a rate 1/2 code, there will be 16 output symbols for every input byte.

This block is designed for continuous data streaming, not packetized data. There is no provision to "flush" the encoder.

---

Member Typedef Documentation

typedef boost::shared_ptr<encode_ccsds_27_bb> gr::fec::encode_ccsds_27_bb::sptr

---

Member Function Documentation

static sptr gr::fec::encode_ccsds_27_bb::make

(

)

[static]

---

The documentation for this class was generated from the following file:

• encode_ccsds_27_bb.h
