gr::fft::ctrlport_probe_psd Class Reference

A ControlPort probe to export vectors of signals. More...

#include <ctrlport_probe_psd.h>

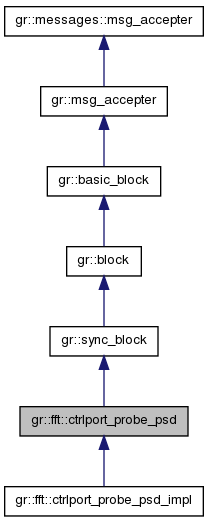

Inheritance diagram for gr::fft::ctrlport_probe_psd:

List of all members.

Public Types
typedef boost::shared_ptr < ctrlport_probe_psd >	sptr
Public Member Functions
virtual std::vector< gr_complex >	get ()=0
virtual void	set_length (int len)=0
virtual int	length () const =0
Static Public Member Functions
static sptr	make (const std::string &id, const std::string &desc, int len)
	Make a ControlPort probe block.

---

Detailed Description

A ControlPort probe to export vectors of signals.

This block acts as a sink in the flowgraph but also exports vectors of complex samples over ControlPort. This block holds the latest len number of complex samples so that every query by a ControlPort client will get the same length vector.

---

Member Typedef Documentation

typedef boost::shared_ptr<ctrlport_probe_psd> gr::fft::ctrlport_probe_psd::sptr

---

Member Function Documentation

virtual std::vector<gr_complex> gr::fft::ctrlport_probe_psd::get

(

)

[pure virtual]

Implemented in gr::fft::ctrlport_probe_psd_impl.

virtual int gr::fft::ctrlport_probe_psd::length

(

)

const [pure virtual]

Implemented in gr::fft::ctrlport_probe_psd_impl.

static sptr gr::fft::ctrlport_probe_psd::make	(	const std::string &	id,
		const std::string &	desc,
		int	len
	)		[static]

Make a ControlPort probe block.

Parameters:

id	A string ID to name the probe over ControlPort.
desc	A string describing the probe.
len	Number of samples to transmit.

virtual void gr::fft::ctrlport_probe_psd::set_length

(

int

len

)

[pure virtual]

Implemented in gr::fft::ctrlport_probe_psd_impl.

---

The documentation for this class was generated from the following file:

• ctrlport_probe_psd.h
