GNU Radio 3.7.2 C++ API

Hierarchical container class for gr::block's and gr::hier_block2's. More...

#include <gnuradio/hier_block2.h>

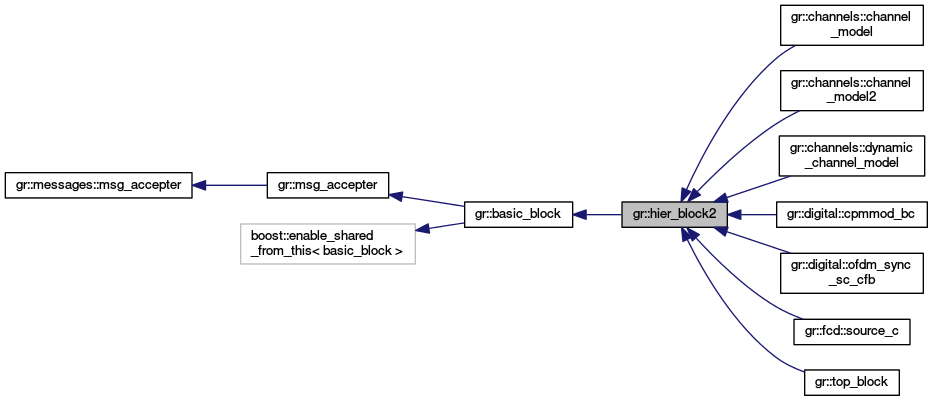

Inheritance diagram for gr::hier_block2:

Public Types

typedef basic_block_sptr opaque_self
 typedef for object returned from self(). More...


Public Member Functions

virtual ~hier_block2 ()

opaque_self self ()
 Return an object, representing the current block, which can be passed to connect. More...

void connect (basic_block_sptr block)
 Add a stand-alone (possibly hierarchical) block to internal graph. More...

void connect (basic_block_sptr src, int src_port, basic_block_sptr dst, int dst_port)
 Add gr-blocks or hierarchical blocks to internal graph and wire together. More...

void msg_connect (basic_block_sptr src, pmt::pmt_t srcport, basic_block_sptr dst, pmt::pmt_t dstport)
 Add gr-blocks or hierarchical blocks to internal graph and wire together. More...

void msg_connect (basic_block_sptr src, std::string srcport, basic_block_sptr dst, std::string dstport)

void msg_disconnect (basic_block_sptr src, pmt::pmt_t srcport, basic_block_sptr dst, pmt::pmt_t dstport)

void msg_disconnect (basic_block_sptr src, std::string srcport, basic_block_sptr dst, std::string dstport)

void disconnect (basic_block_sptr block)
 Remove a gr-block or hierarchical block from the internal flowgraph. More...

void disconnect (basic_block_sptr src, int src_port, basic_block_sptr dst, int dst_port)
 Disconnect a pair of gr-blocks or hierarchical blocks in internal flowgraph. More...

void disconnect_all ()
 Disconnect all connections in the internal flowgraph. More...

virtual void lock ()

virtual void unlock ()

flat_flowgraph_sptr flatten () const

hier_block2_sptr to_hier_block2 ()

bool has_msg_port (pmt::pmt_t which_port)

bool message_port_is_hier (pmt::pmt_t port_id)

bool message_port_is_hier_in (pmt::pmt_t port_id)

bool message_port_is_hier_out (pmt::pmt_t port_id)

void message_port_register_hier_in (pmt::pmt_t port_id)

void message_port_register_hier_out (pmt::pmt_t port_id)

void set_processor_affinity (const std::vector< int > &mask)
 Set the affinity of all blocks in hier_block2 to processor core n. More...

void unset_processor_affinity ()
 Remove processor affinity for all blocks in hier_block2. More...

std::vector< int > processor_affinity ()
 Get the current processor affinity. More...

- Public Member Functions inherited from gr::basic_block
pmt::pmt_t message_subscribers (pmt::pmt_t port)

virtual ~basic_block ()

long unique_id () const

long symbolic_id () const

std::string name () const

std::string symbol_name () const

gr::io_signature::sptr input_signature () const

gr::io_signature::sptr output_signature () const

basic_block_sptr to_basic_block ()

bool alias_set ()

std::string alias ()

pmt::pmt_t alias_pmt ()

void set_block_alias (std::string name)

void message_port_register_in (pmt::pmt_t port_id)

void message_port_register_out (pmt::pmt_t port_id)

void message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

pmt::pmt_t message_ports_in ()
 Get input message port names. More...

pmt::pmt_t message_ports_out ()
 Get output message port names. More...

void _post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool empty_p (pmt::pmt_t which_port)
 is the queue empty? More...

bool empty_p ()

bool empty_handled_p (pmt::pmt_t which_port)
 are all msg ports with handlers empty? More...

bool empty_handled_p ()

size_t nmsgs (pmt::pmt_t which_port)
 How many messages in the queue? More...

void insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator get_iterator (pmt::pmt_t which_port)

void erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual void setup_rpc ()
 Set up the RPC registered variables. More...

bool is_rpc_set ()
 Ask if this block has been registered to the RPC. More...

void rpc_set ()
 When the block is registered with the RPC, set this. More...

virtual bool check_topology (int ninputs, int noutputs)
 Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void set_msg_handler (pmt::pmt_t which_port, T msg_handler)
 Set the callback that is fired when messages are available. More...

- Public Member Functions inherited from gr::msg_accepter
 msg_accepter ()

 ~msg_accepter ()

void post (pmt::pmt_t which_port, pmt::pmt_t msg)
 send msg to msg_accepter on port which_port More...

- Public Member Functions inherited from gr::messages::msg_accepter
 msg_accepter ()


Public Attributes

pmt::pmt_t hier_message_ports_in

pmt::pmt_t hier_message_ports_out


Protected Member Functions

 hier_block2 (void)

 hier_block2 (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

- Protected Member Functions inherited from gr::basic_block
 basic_block (void)

 basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
 Protected constructor prevents instantiation by non-derived classes. More...

void set_input_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_output_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_color (vcolor color)
 Allow the flowgraph to set for sorting and partitioning. More...

vcolor color () const

virtual bool has_msg_handler (pmt::pmt_t which_port)
 Tests if there is a handler attached to port which_port. More...

virtual void dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)


Friends

class hier_block2_detail

GR_RUNTIME_API hier_block2_sptr make_hier_block2 (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
 public constructor for hier_block2 More...


Additional Inherited Members

- Protected Types inherited from gr::basic_block
enum  vcolor { WHITE, GREY, BLACK }

- Protected Attributes inherited from gr::basic_block
std::string d_name

gr::io_signature::sptr d_input_signature

gr::io_signature::sptr d_output_signature

long d_unique_id

long d_symbolic_id

std::string d_symbol_name

std::string d_symbol_alias

vcolor d_color

bool d_rpc_set

msg_queue_map_t msg_queue

std::vector< boost::any > d_rpc_vars

pmt::pmt_t d_message_subscribers


Detailed Description

Hierarchical container class for gr::block's and gr::hier_block2's.

Member Typedef Documentation

typedef for object returned from self().

This type is only guaranteed to be passable to connect and disconnect. No other assumptions should be made about it.

Constructor & Destructor Documentation

gr::hier_block2::hier_block2 ( void  )
inlineprotected
gr::hier_block2::hier_block2 ( const std::string &  name,
gr::io_signature::sptr  input_signature,
gr::io_signature::sptr  output_signature
)
protected
virtual gr::hier_block2::~hier_block2 ( )
virtual

Member Function Documentation

void gr::hier_block2::connect ( basic_block_sptr  block)

Add a stand-alone (possibly hierarchical) block to internal graph.

This adds a gr-block or hierarchical block to the internal graph without wiring it to anything else.

void gr::hier_block2::connect ( basic_block_sptr  src,
int  src_port,
basic_block_sptr  dst,
int  dst_port
)

Add gr-blocks or hierarchical blocks to internal graph and wire together.

This adds (if not done earlier by another connect) a pair of gr-blocks or hierarchical blocks to the internal flowgraph, and wires the specified output port to the specified input port.

void gr::hier_block2::disconnect ( basic_block_sptr  block)

Remove a gr-block or hierarchical block from the internal flowgraph.

This removes a gr-block or hierarchical block from the internal flowgraph, disconnecting it from other blocks as needed.

void gr::hier_block2::disconnect ( basic_block_sptr  src,
int  src_port,
basic_block_sptr  dst,
int  dst_port
)

Disconnect a pair of gr-blocks or hierarchical blocks in internal flowgraph.

This disconnects the specified input port from the specified output port of a pair of gr-blocks or hierarchical blocks.

void gr::hier_block2::disconnect_all ( )

Disconnect all connections in the internal flowgraph.

This call removes all output port to input port connections in the internal flowgraph.

flat_flowgraph_sptr gr::hier_block2::flatten ( ) const
bool gr::hier_block2::has_msg_port ( pmt::pmt_t  which_port)
inlinevirtual

Reimplemented from gr::basic_block.

References gr::basic_block::has_msg_port().

virtual void gr::hier_block2::lock ( )
virtual

Lock a flowgraph in preparation for reconfiguration. When an equal number of calls to lock() and unlock() have occurred, the flowgraph will be reconfigured.

N.B. lock() and unlock() may not be called from a flowgraph thread (E.g., gr::block::work method) or deadlock will occur when reconfiguration happens.

Reimplemented in gr::top_block.

bool gr::hier_block2::message_port_is_hier ( pmt::pmt_t  port_id)
inlinevirtual

Reimplemented from gr::basic_block.

bool gr::hier_block2::message_port_is_hier_in ( pmt::pmt_t  port_id)
inlinevirtual

Reimplemented from gr::basic_block.

References pmt::list_has().

bool gr::hier_block2::message_port_is_hier_out ( pmt::pmt_t  port_id)
inlinevirtual

Reimplemented from gr::basic_block.

References pmt::list_has().

void gr::hier_block2::message_port_register_hier_in ( pmt::pmt_t  port_id)
inline

References pmt::list_add(), and pmt::list_has().

void gr::hier_block2::message_port_register_hier_out ( pmt::pmt_t  port_id)
inline
void gr::hier_block2::msg_connect ( basic_block_sptr  src,
pmt::pmt_t  srcport,
basic_block_sptr  dst,
pmt::pmt_t  dstport
)

Add gr-blocks or hierarchical blocks to internal graph and wire together.

This adds (if not done earlier by another connect) a pair of gr-blocks or hierarchical blocks to the internal message port subscription

void gr::hier_block2::msg_connect ( basic_block_sptr  src,
std::string  srcport,
basic_block_sptr  dst,
std::string  dstport
)
void gr::hier_block2::msg_disconnect ( basic_block_sptr  src,
pmt::pmt_t  srcport,
basic_block_sptr  dst,
pmt::pmt_t  dstport
)
void gr::hier_block2::msg_disconnect ( basic_block_sptr  src,
std::string  srcport,
basic_block_sptr  dst,
std::string  dstport
)
std::vector<int> gr::hier_block2::processor_affinity ( )
virtual

Get the current processor affinity.

This returns the processor affinity value for the first block in the hier_block2's list of blocks with the assumption that they have always only been set through the hier_block2's interface. If any block has been individually set, then this call could be misleading.

Reimplemented from gr::basic_block.

opaque_self gr::hier_block2::self ( )

Return an object, representing the current block, which can be passed to connect.

The returned object may only be used as an argument to connect or disconnect. Any other use of self() results in unspecified (erroneous) behavior.

void gr::hier_block2::set_processor_affinity ( const std::vector< int > &  mask)
virtual

Set the affinity of all blocks in hier_block2 to processor core n.

Parameters
maska vector of ints of the core numbers available to this block.

Reimplemented from gr::basic_block.

hier_block2_sptr gr::hier_block2::to_hier_block2 ( )
virtual void gr::hier_block2::unlock ( )
virtual

Unlock a flowgraph in preparation for reconfiguration. When an equal number of calls to lock() and unlock() have occurred, the flowgraph will be reconfigured.

N.B. lock() and unlock() may not be called from a flowgraph thread (E.g., gr::block::work method) or deadlock will occur when reconfiguration happens.

Reimplemented in gr::top_block.

void gr::hier_block2::unset_processor_affinity ( )
virtual

Remove processor affinity for all blocks in hier_block2.

Reimplemented from gr::basic_block.

Friends And Related Function Documentation

friend class hier_block2_detail
friend
GR_RUNTIME_API hier_block2_sptr make_hier_block2 ( const std::string &  name,
gr::io_signature::sptr  input_signature,
gr::io_signature::sptr  output_signature
)
friend

public constructor for hier_block2

Member Data Documentation

pmt::pmt_t gr::hier_block2::hier_message_ports_in
pmt::pmt_t gr::hier_block2::hier_message_ports_out

The documentation for this class was generated from the following file:
