GNU Radio 3.7.2 C++ API
gr::video_sdl::sink_uc Class Reference

video sink using SDL More...

#include <gnuradio/video_sdl/sink_uc.h>

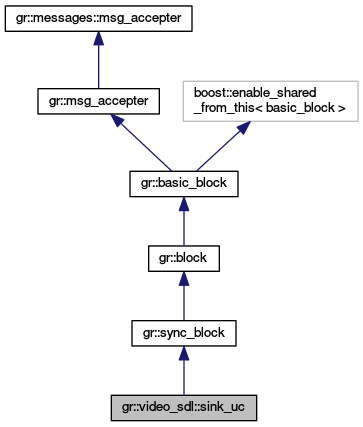

Inheritance diagram for gr::video_sdl::sink_uc:

Public Types

typedef boost::shared_ptr
< sink_uc
sptr

- Public Types inherited from gr::block
enum  { WORK_CALLED_PRODUCE = -2, WORK_DONE = -1 }
 Magic return values from general_work. More...

enum  tag_propagation_policy_t { TPP_DONT = 0, TPP_ALL_TO_ALL = 1, TPP_ONE_TO_ONE = 2 }


Static Public Member Functions

static sptr make (double framerate, int width, int height, unsigned int format, int dst_width, int dst_height)


Additional Inherited Members

- Public Member Functions inherited from gr::sync_block
virtual int work (int noutput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)=0
 just like gr::block::general_work, only this arranges to call consume_each for you More...

void forecast (int noutput_items, gr_vector_int &ninput_items_required)
 Estimate input requirements given output request. More...

int general_work (int noutput_items, gr_vector_int &ninput_items, gr_vector_const_void_star &input_items, gr_vector_void_star &output_items)
 compute output items from input items More...

int fixed_rate_ninput_to_noutput (int ninput)
 Given ninput samples, return number of output samples that will be produced. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

int fixed_rate_noutput_to_ninput (int noutput)
 Given noutput samples, return number of input samples required to produce noutput. N.B. this is only defined if fixed_rate returns true. Generally speaking, you don't need to override this. More...

- Public Member Functions inherited from gr::block
virtual ~block ()

unsigned history () const

void set_history (unsigned history)

void declare_sample_delay (int which, unsigned delay)

void declare_sample_delay (unsigned delay)

unsigned sample_delay (int which) const

bool fixed_rate () const
 Return true if this block has a fixed input to output rate. More...

virtual bool start ()
 Called to enable drivers, etc for i/o devices. More...

virtual bool stop ()
 Called to disable drivers, etc for i/o devices. More...

void set_output_multiple (int multiple)
 Constrain the noutput_items argument passed to forecast and general_work. More...

int output_multiple () const

bool output_multiple_set () const

void set_alignment (int multiple)
 Constrains buffers to work on a set item alignment (for SIMD) More...

int alignment () const

void set_unaligned (int na)

int unaligned () const

void set_is_unaligned (bool u)

bool is_unaligned () const

void consume (int which_input, int how_many_items)
 Tell the scheduler how_many_items of input stream which_input were consumed. More...

void consume_each (int how_many_items)
 Tell the scheduler how_many_items were consumed on each input stream. More...

void produce (int which_output, int how_many_items)
 Tell the scheduler how_many_items were produced on output stream which_output. More...

void set_relative_rate (double relative_rate)
 Set the approximate output rate / input rate. More...

double relative_rate () const
 return the approximate output rate / input rate More...

uint64_t nitems_read (unsigned int which_input)
 Return the number of items read on input stream which_input. More...

uint64_t nitems_written (unsigned int which_output)
 Return the number of items written on output stream which_output. More...

tag_propagation_policy_t tag_propagation_policy ()
 Asks for the policy used by the scheduler to moved tags downstream. More...

void set_tag_propagation_policy (tag_propagation_policy_t p)
 Set the policy by the scheduler to determine how tags are moved downstream. More...

int min_noutput_items () const
 Return the minimum number of output items this block can produce during a call to work. More...

void set_min_noutput_items (int m)
 Set the minimum number of output items this block can produce during a call to work. More...

int max_noutput_items ()
 Return the maximum number of output items this block will handle during a call to work. More...

void set_max_noutput_items (int m)
 Set the maximum number of output items this block will handle during a call to work. More...

void unset_max_noutput_items ()
 Clear the switch for using the max_noutput_items value of this block. More...

bool is_set_max_noutput_items ()
 Ask the block if the flag is or is not set to use the internal value of max_noutput_items during a call to work. More...

void expand_minmax_buffer (int port)

long max_output_buffer (size_t i)
 Returns max buffer size on output port i. More...

void set_max_output_buffer (long max_output_buffer)
 Sets max buffer size on all output ports. More...

void set_max_output_buffer (int port, long max_output_buffer)
 Sets max buffer size on output port port. More...

long min_output_buffer (size_t i)
 Returns min buffer size on output port i. More...

void set_min_output_buffer (long min_output_buffer)
 Sets min buffer size on all output ports. More...

void set_min_output_buffer (int port, long min_output_buffer)
 Sets min buffer size on output port port. More...

float pc_noutput_items ()
 Gets instantaneous noutput_items performance counter. More...

float pc_noutput_items_avg ()
 Gets average noutput_items performance counter. More...

float pc_noutput_items_var ()
 Gets variance of noutput_items performance counter. More...

float pc_nproduced ()
 Gets instantaneous num items produced performance counter. More...

float pc_nproduced_avg ()
 Gets average num items produced performance counter. More...

float pc_nproduced_var ()
 Gets variance of num items produced performance counter. More...

float pc_input_buffers_full (int which)
 Gets instantaneous fullness of which input buffer. More...

float pc_input_buffers_full_avg (int which)
 Gets average fullness of which input buffer. More...

float pc_input_buffers_full_var (int which)
 Gets variance of fullness of which input buffer. More...

std::vector< float > pc_input_buffers_full ()
 Gets instantaneous fullness of all input buffers. More...

std::vector< float > pc_input_buffers_full_avg ()
 Gets average fullness of all input buffers. More...

std::vector< float > pc_input_buffers_full_var ()
 Gets variance of fullness of all input buffers. More...

float pc_output_buffers_full (int which)
 Gets instantaneous fullness of which input buffer. More...

float pc_output_buffers_full_avg (int which)
 Gets average fullness of which input buffer. More...

float pc_output_buffers_full_var (int which)
 Gets variance of fullness of which input buffer. More...

std::vector< float > pc_output_buffers_full ()
 Gets instantaneous fullness of all output buffers. More...

std::vector< float > pc_output_buffers_full_avg ()
 Gets average fullness of all output buffers. More...

std::vector< float > pc_output_buffers_full_var ()
 Gets variance of fullness of all output buffers. More...

float pc_work_time ()
 Gets instantaneous clock cycles spent in work. More...

float pc_work_time_avg ()
 Gets average clock cycles spent in work. More...

float pc_work_time_var ()
 Gets average clock cycles spent in work. More...

float pc_work_time_total ()
 Gets total clock cycles spent in work. More...

void reset_perf_counters ()
 Resets the performance counters. More...

void setup_pc_rpc ()
 Sets up export of perf. counters to ControlPort. Only called by the scheduler. More...

bool is_pc_rpc_set ()
 Checks if this block is already exporting perf. counters to ControlPort. More...

void no_pc_rpc ()
 If the block calls this in its constructor, it's perf. counters will not be exported. More...

void set_processor_affinity (const std::vector< int > &mask)
 Set the thread's affinity to processor core n. More...

void unset_processor_affinity ()
 Remove processor affinity to a specific core. More...

std::vector< int > processor_affinity ()
 Get the current processor affinity. More...

int active_thread_priority ()
 Get the current thread priority in use. More...

int thread_priority ()
 Get the current thread priority stored. More...

int set_thread_priority (int priority)
 Set the current thread priority. More...

bool update_rate () const

block_detail_sptr detail () const

void set_detail (block_detail_sptr detail)

- Public Member Functions inherited from gr::basic_block
pmt::pmt_t message_subscribers (pmt::pmt_t port)

virtual ~basic_block ()

long unique_id () const

long symbolic_id () const

std::string name () const

std::string symbol_name () const

gr::io_signature::sptr input_signature () const

gr::io_signature::sptr output_signature () const

basic_block_sptr to_basic_block ()

bool alias_set ()

std::string alias ()

pmt::pmt_t alias_pmt ()

void set_block_alias (std::string name)

void message_port_register_in (pmt::pmt_t port_id)

void message_port_register_out (pmt::pmt_t port_id)

void message_port_pub (pmt::pmt_t port_id, pmt::pmt_t msg)

void message_port_sub (pmt::pmt_t port_id, pmt::pmt_t target)

void message_port_unsub (pmt::pmt_t port_id, pmt::pmt_t target)

virtual bool message_port_is_hier (pmt::pmt_t port_id)

virtual bool message_port_is_hier_in (pmt::pmt_t port_id)

virtual bool message_port_is_hier_out (pmt::pmt_t port_id)

pmt::pmt_t message_ports_in ()
 Get input message port names. More...

pmt::pmt_t message_ports_out ()
 Get output message port names. More...

void _post (pmt::pmt_t which_port, pmt::pmt_t msg)

bool empty_p (pmt::pmt_t which_port)
 is the queue empty? More...

bool empty_p ()

bool empty_handled_p (pmt::pmt_t which_port)
 are all msg ports with handlers empty? More...

bool empty_handled_p ()

size_t nmsgs (pmt::pmt_t which_port)
 How many messages in the queue? More...

void insert_tail (pmt::pmt_t which_port, pmt::pmt_t msg)

pmt::pmt_t delete_head_nowait (pmt::pmt_t which_port)

pmt::pmt_t delete_head_blocking (pmt::pmt_t which_port)

msg_queue_t::iterator get_iterator (pmt::pmt_t which_port)

void erase_msg (pmt::pmt_t which_port, msg_queue_t::iterator it)

virtual bool has_msg_port (pmt::pmt_t which_port)

virtual void setup_rpc ()
 Set up the RPC registered variables. More...

bool is_rpc_set ()
 Ask if this block has been registered to the RPC. More...

void rpc_set ()
 When the block is registered with the RPC, set this. More...

virtual bool check_topology (int ninputs, int noutputs)
 Confirm that ninputs and noutputs is an acceptable combination. More...

template<typename T >
void set_msg_handler (pmt::pmt_t which_port, T msg_handler)
 Set the callback that is fired when messages are available. More...

- Public Member Functions inherited from gr::msg_accepter
 msg_accepter ()

 ~msg_accepter ()

void post (pmt::pmt_t which_port, pmt::pmt_t msg)
 send msg to msg_accepter on port which_port More...

- Public Member Functions inherited from gr::messages::msg_accepter
 msg_accepter ()

- Protected Types inherited from gr::basic_block
enum  vcolor { WHITE, GREY, BLACK }

- Protected Member Functions inherited from gr::sync_block
 sync_block (void)

 sync_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

- Protected Member Functions inherited from gr::block
 block (void)

 block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)

void set_fixed_rate (bool fixed_rate)

void add_item_tag (unsigned int which_output, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
 Adds a new tag onto the given output buffer. More...

void add_item_tag (unsigned int which_output, const tag_t &tag)
 Adds a new tag onto the given output buffer. More...

void remove_item_tag (unsigned int which_input, uint64_t abs_offset, const pmt::pmt_t &key, const pmt::pmt_t &value, const pmt::pmt_t &srcid=pmt::PMT_F)
 Removes a tag from the given input buffer. More...

void remove_item_tag (unsigned int which_input, const tag_t &tag)
 Removes a tag from the given input buffer. More...

void get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end)
 Given a [start,end), returns a vector of all tags in the range. More...

void get_tags_in_range (std::vector< tag_t > &v, unsigned int which_input, uint64_t abs_start, uint64_t abs_end, const pmt::pmt_t &key)
 Given a [start,end), returns a vector of all tags in the range with a given key. More...

void enable_update_rate (bool en)

- Protected Member Functions inherited from gr::basic_block
 basic_block (void)

 basic_block (const std::string &name, gr::io_signature::sptr input_signature, gr::io_signature::sptr output_signature)
 Protected constructor prevents instantiation by non-derived classes. More...

void set_input_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_output_signature (gr::io_signature::sptr iosig)
 may only be called during constructor More...

void set_color (vcolor color)
 Allow the flowgraph to set for sorting and partitioning. More...

vcolor color () const

virtual bool has_msg_handler (pmt::pmt_t which_port)
 Tests if there is a handler attached to port which_port. More...

virtual void dispatch_msg (pmt::pmt_t which_port, pmt::pmt_t msg)

- Protected Attributes inherited from gr::block
std::vector< long > d_max_output_buffer

std::vector< long > d_min_output_buffer

gr::thread::mutex d_setlock

gr::logger_ptr d_logger

gr::logger_ptr d_debug_logger

- Protected Attributes inherited from gr::basic_block
std::string d_name

gr::io_signature::sptr d_input_signature

gr::io_signature::sptr d_output_signature

long d_unique_id

long d_symbolic_id

std::string d_symbol_name

std::string d_symbol_alias

vcolor d_color

bool d_rpc_set

msg_queue_map_t msg_queue

std::vector< boost::any > d_rpc_vars

pmt::pmt_t d_message_subscribers


Detailed Description

video sink using SDL

input signature is one, two or three streams of uchar. One stream: stream is grey (Y) two streems: first is grey (Y), second is alternating U and V Three streams: first is grey (Y), second is U, third is V Input samples must be in the range [0,255].

Member Typedef Documentation

Member Function Documentation

static sptr gr::video_sdl::sink_uc::make ( double  framerate,
int  width,
int  height,
unsigned int  format,
int  dst_width,
int  dst_height
)
static

The documentation for this class was generated from the following file:
